OVERVIEW

  • At full brightness, each node produces light output of up to 10.5 candela and 7529 nits per node.
  • Strands can be mounted directly to a surface, like traditional string lights. Detachable leader cables in multiple lengths allow you to install strings at the appropriate distance from power / data supplies. Optional mounting tracks ensure straight linear runs, while snap-on spacers hide cabling and mounting hardware. Single node mounts can be positioned individually as anchor points for installations with uneven node spacing or complex geometries.
  • Flexible form factor, offering maximum lighting control at 25 W per strand, accommodates unique lighting installations, including two- and three-dimensional video displays.
  • Clear dome and translucent dome lenses are standard. Clear flat and translucent flat lenses are also available.
  • eW Flex Micro strands are available with standard on-center node spacing of 102 mm (4 in) or 305 mm (12 in) along a three-wire, 18 AWG cable. For information about custom orders, see the eW Flex Micro Ordering Sheet
  • Custom Leader Cable lengths are available in addition to standard cables of 7.6 m (25 ft), 15.2 m (50 ft), and 30.5 m (100 ft).
  • eW Flex Micro works seamlessly with the complete Philips line of controllers, including Video System Manager Pro, Light System Manager, and iPlayer 3, as well as third-party DMX controllers.
  • Durable and weather-resistant — Fully sealed for maximum fixture life and IP66-rated for outdoor applications.

eW Flex Micro

MANUFACTURER: Philips Color Kinetics

DESCRIPTION:

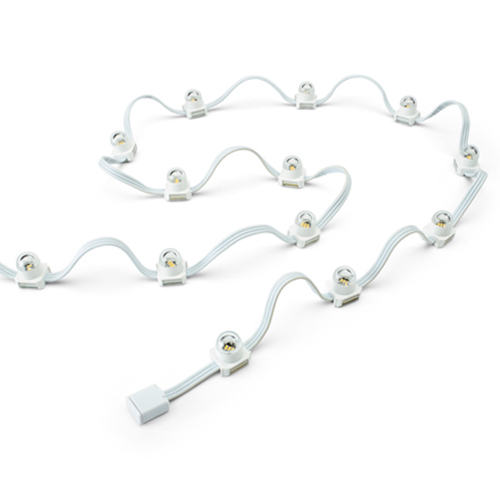

  • eW Flex Micro is a versatile strand of 50 small, individually controllable LED nodes. The flexible form factor allows dynamic points of white light to be installed across nearly any interior or exterior surface, including walls, ceilings, floors, three-dimensional sculptures, and set pieces. eW Flex Micro can also light tight alcove spaces and signage, and in certain cases, can even display video.

DOWNLOADS

2700 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

2700 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

2700 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

2700 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

3000 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

3000 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

3000 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

3000 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

3500 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

3500 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

3500 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

3500 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

4000 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

4000 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

4000 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

4000 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

5000 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

5000 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

5000 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

5000 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

5700 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

5700 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

5700 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

5700 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

6500 K, Clear Dome Lens, Black Housing, 4 in On-Center Node Spacing

6500 K, Clear Dome Lens, White Housing, 4 in On-Center Node Spacing

6500 K, Translucent Dome Lens, Black Housing, 4 in On-Center Node Spacing

6500 K, Translucent Dome Lens, White Housing, 4 in On-Center Node Spacing

Manual

2700 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

2700 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

2700 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

2700 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

3000 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

3000 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

3000 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

3000 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

3500 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

3500 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

3500 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

3500 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

4000 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

4000 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

4000 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

4000 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

5000 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

5000 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

5000 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

5000 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

5700 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

5700 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

5700 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

5700 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing

6500 K, Clear Dome Lens, Black Housing, 12 in On-Center Node Spacing

6500 K, Clear Dome Lens, White Housing, 12 in On-Center Node Spacing

6500 K, Translucent Dome Lens, Black Housing, 12 in On-Center Node Spacing

6500 K, Translucent Dome Lens, White Housing, 12 in On-Center Node Spacing
