OVERVIEW

  • USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
  • Single DMX 512 output on 5-pin XLR connector
  • 512 channels total output capacity
  • Up to eight units can be connected via a USB Hub (except to Road Hog 4, where four can be connected)
  • Rugged, sleek metalStatus LEDs for power and data in/out package that can be stacked
  • Kensington Security Slot
  • One USB input connector
  • Fully powered via USB port

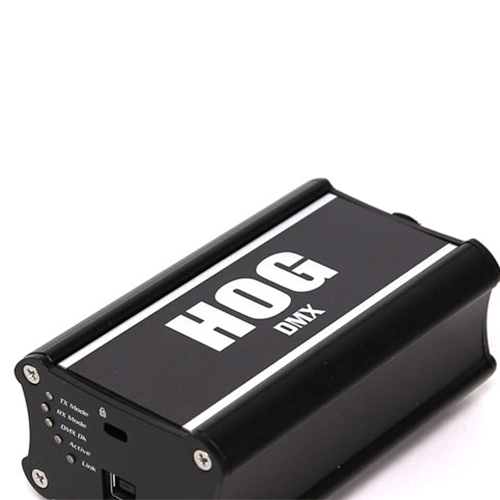

USB DMX WIDGET

MANUFACTURER: Flying Pig

DESCRIPTION:

  • Packaged in a sleek, black metal package, the Wholehog DMX Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Up to eight DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only four DMX Widgets can be connected to the Road Hog 4.
  • This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4,users can configure powerful control solutions that precisely suit their needs and budgets.
  • For Hog 4 PC users, attaching 1 DMX Widget also unlocks 1 universe of DMX over Art-Net and E1.3.1 (sACN). Users can connect up to 8 total DMX Widgets to Hog 4 PC to unlock a total of 8 Art-Net and sACN universes.
