OVERVIEW

  • High efficiency 13,000 Lumens Beam & 12,000 Lumens Wash
  • 575w mini-fast fit lamp - 750 hrs.
  • Fast 3:1 zoom - 8°-32°
  • Hard Edge 6° collimated beam
  • CMY color mixing
  • Color wheel with eight replaceable positions plus open
  • Mechanical strobe
  • Fast mechanical iris
  • Unique Indigo Highlighter LED Output
  • Color LCD menu with battery operation
  • Low ambient noise
  • RDM compatible
  • Included roadcase
  • Auto-switching power supply 100v-240v
  • 21 DMX channels
  • DMX/RDM connectors: 5-pin XLR, 3-pin XLR
  • High resolution microstepping motor control for smooth motion at all speeds
  • Stunningly fast, smooth, and quiet yoke movement
  • Computer designed optical components for maximum light efficiency
  • Performance-oriented exterior design prevents stray light scatter
  • Low noise, high efficiency cooling system
  • 3-pin and 5-pin XLR connectors
  • Electronic cooling system control
  • Pan and tilt locks for easy transportation
  • ETL/UL and CE compliance

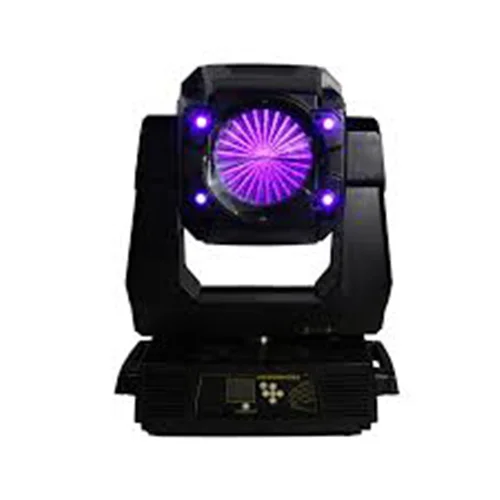

TECHNOARC

MANUFACTURER: High End

DESCRIPTION:

  • Designed for a wide variety of small and medium scale performance applications, TechnoArc is a compact soft-edge luminaire with exceptional value and performance. A natural companion to the Technospot, this full featured fixture is designed for club, stage, and studio applications where environmental durability and high quality output are required.
  • TechnoArc features smooth CMY color mixing and a fixed color wheel. Following the professional lighting, large exiting aperture trend, TechnoArc features a prominent 6.5 inch lens, 8° to 32° zoom, and over 14,000 lumens of output.
  • A smooth field, soft-edge illumination is produced using a patented radial lenticular homogenizing lens system that provides a signature look on stage. Furthermore, a stunning collimated 5° beam of hard-edge light is possible when bypassing the radial lenticular lens. A mechanical iris provides even narrower beams for incredibly thin shafts of output.
  • TechnoArc also features the indigo highlighter which provides additional light output from four 1-watt indigo LEDs, thus increasing the layering abilities of the large aperture fixture.
  • TechnoArc offers designers and operators a versatile, fully integrated system with unprecedented brightness, speed and accuracy for a light of its kind.

DOWNLOADS

Spec Sheet |Manual
